electric bike kit
E bike foldable citybike folding motorcycle green city electric bikes
|
Model
|
A1-7
|
|
Max Speed
|
25km/h
|
|
Tyre
|
20″*1.75
|
|
Motor Power
|
36V250W
|
|
Lithium Battery
|
36V10AH
|
|
Frame
|
6061 Aluminum alloy
|
|
Brake
|
Front and rear 160 disc brake
|
|
Charging Time
|
4-6 hours
|
|
Front Light
|
LED headlight with USB charging port
|

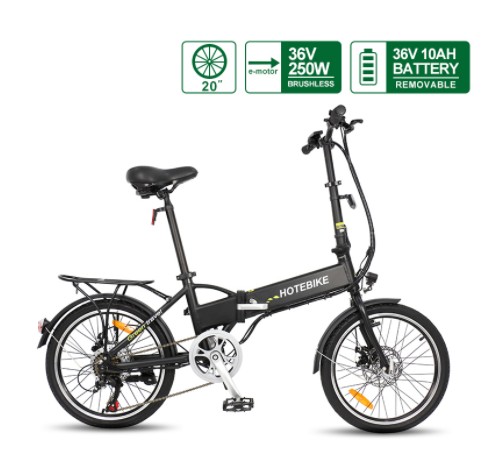

Whether you want to go exercising, commuting,traveling, this 20-inch folding electric bicycle can provide you with all the convenience and power you need.
Only several steps to fold up the folding electric bike. After being fully folded, it will be compact and portable, and there is no problem carrying it around.
Details Images
LCD Display
The multi-function LCD 880 display shows many information such as battery capacity, speed, distance, temperature, etc, make you
enjoy a better journey.
enjoy a better journey.
High-power Motor
250W 350W 500W motor for optional, strong torque and high speed, bring you powerful experience.
Waterproof Hidden Battery
36v 10Ah lithium-ion battery is put into the frame, protecting the battery form water and rain, so the life span will be extended.
New Update Headlight
3W LED headlight is equipped for night riding, controlled by multi function LCD display, more convenient and safer.
Accompanied by a 5V1A USB mobile phone charging port, avoiding emergencies when your phone suddenly runs out of power.
PAS Sensor
The upgraded 10 magnets pedal assist sensor has 1:1 pedal assistant and with five adjustable speed,with the PAS sensor,your
journey will become more safe and funny.
journey will become more safe and funny.
Reflector
The high performance front and rear reflector can help protect you from cars and other bikes in the night.
Upgraded Seat Tube
The higher upgraded seat tube will fulfill different people’s needs, make it more fitted and comfortable when you are riding a folding electric bike.
OEM service is also available.
Please contact us whether the E-BIKE you need is black or white.
Specification
|
Specification
|
Standard
|
Optional（MOQ≥100）
|
|
Colour
|
White/Black
|
OEM
|
|
Motor
|
36V 250W/350W brushless hub-motor
|
36V 500W brushless hub-motor
|
|
Max speed
|
25-32 km/h
|
25-35km/h
|
|
Battery
|
36V 10AH lithium hidden battery
|
36V 13.6AH lithium hidden battery
|
|
Range
|
1:1 PAS mode, 40-60KM
|
|
|
Warranty
|
12 months(Motor & Battery)
|
|
|
Initiating mode
|
PAS and Thumb Throttle
|
|
|
Charger
|
42V 2A 100-240V input CE/UL Certification
|
|
|
Charging time
|
5-7 hours
|
|
|
Controller
|
36V Intelligent brushless
|
|
|
Loading
|
120kg
|
|
|
Folding head tube
|
Steel
|
Aluminum alloy
|
|
Frame
|
Folding 6061 aluminum alloy
|
|
|
Wheel rim
|
Aluminum alloy double wall
|
6 spoke magnesium alloy
|
|
Front fork
|
Steel
|
Aluminum alloy
|
|
Front brake
|
V-brake
|
Disc brake
|
|
Rear brake
|
Rear electric brake with motor lock
|
Disc brake
|
|
Tyre
|
20″*1.75
|
Anti-stab tire
|
|
Gear
|
Single speed
|
7 gears
|
|
PAS
|
Five adjustable speed, 1:1 pedal assistant
|
|
|
Brake lever
|
Aluminum alloy
|
|
|
Display
|
Shuangye LCD880
|
|
|
Rear rack
|
Steel
|
|
|
Fender
|
Plastic
|
|
|
Saddle
|
Comfortable saddle
|
Other saddle
|
|
Seat tube
|
Aluminum alloy
|
|
|
Front light
|
3W LED headlight with USB charging port
|
|
|
Rear light
|
Riding light, flashing brakes
|
|
|
Rear suspension
|
Rear suspension
|
|
|
Sticker &color
|
Hotebike
|
OEM
|
|
Weight
|
N.W:20.5kgs G.W:25kgs
|
|
|
Carton size
|
89*41*72cm
|
Company Profile
Zhuhai Shuangye Electronic Technology Co., Ltd. is a manufacturer of electric bike,electric bike lithium battery,charger,and electric bike controller with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in electric bike and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2010,sell to North America(33.00%),Oceania(19.00%),South America(16.00%),Eastern Europe(9.00%),Western Europe(8.00%),Southeast Asia(5.00%),Southern Europe(5.00%),Northern Europe(3.00%),Africa(00.00%),Mid East(00.00%). There are total about 51-100 people in our office.2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;3.what can you buy from us?
Electric Bicycle,Electric Scooter4. why should you buy from us not from other suppliers?
we are professional manufacturer engaged in the research, development, production, sale and service, we are committed to manufacturing electric bike, electric bike lithium battery, charger,and electric bike controller.5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2010,sell to North America(33.00%),Oceania(19.00%),South America(16.00%),Eastern Europe(9.00%),Western Europe(8.00%),Southeast Asia(5.00%),Southern Europe(5.00%),Northern Europe(3.00%),Africa(00.00%),Mid East(00.00%). There are total about 51-100 people in our office.2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;3.what can you buy from us?
Electric Bicycle,Electric Scooter4. why should you buy from us not from other suppliers?
we are professional manufacturer engaged in the research, development, production, sale and service, we are committed to manufacturing electric bike, electric bike lithium battery, charger,and electric bike controller.5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
If you are interested in any models, you can send us the links or leave us message to check the recommended hot seller models to your market.zhebike.en.alibaba.com
