electric bike kit
For 15 Years We Have Been Creating Customized electric bike Manufacturing Solution More Than 98.9% of customers praise our products and over of 90% of our customers return to choose and recommend HOTEBIKE over time.
√Offering OEM and ODM service,we can make the motor parameter, battery capacity, logo, package, color as clients’ requirements.
√Offering you sales technical support,for motor and battery, the warranty is about 12 months. controller 15 months,other after-sales issues, etc.
√sample order is acceptable, but there will be extra cost.
√payment method:T/T, Western Union, Paypal We produce electric bikes, electric bike kits, scooters, and various accessories.
Even your order is 10-50pics, we can give you great discount, because we are factory and can offer you the lower price. Whats more, the whole electric system is developed by ourselves, which is the most important to provide our customers better service.
Click Contact Supplier to contact us that you will be listed as key service customers by us.
Products Description

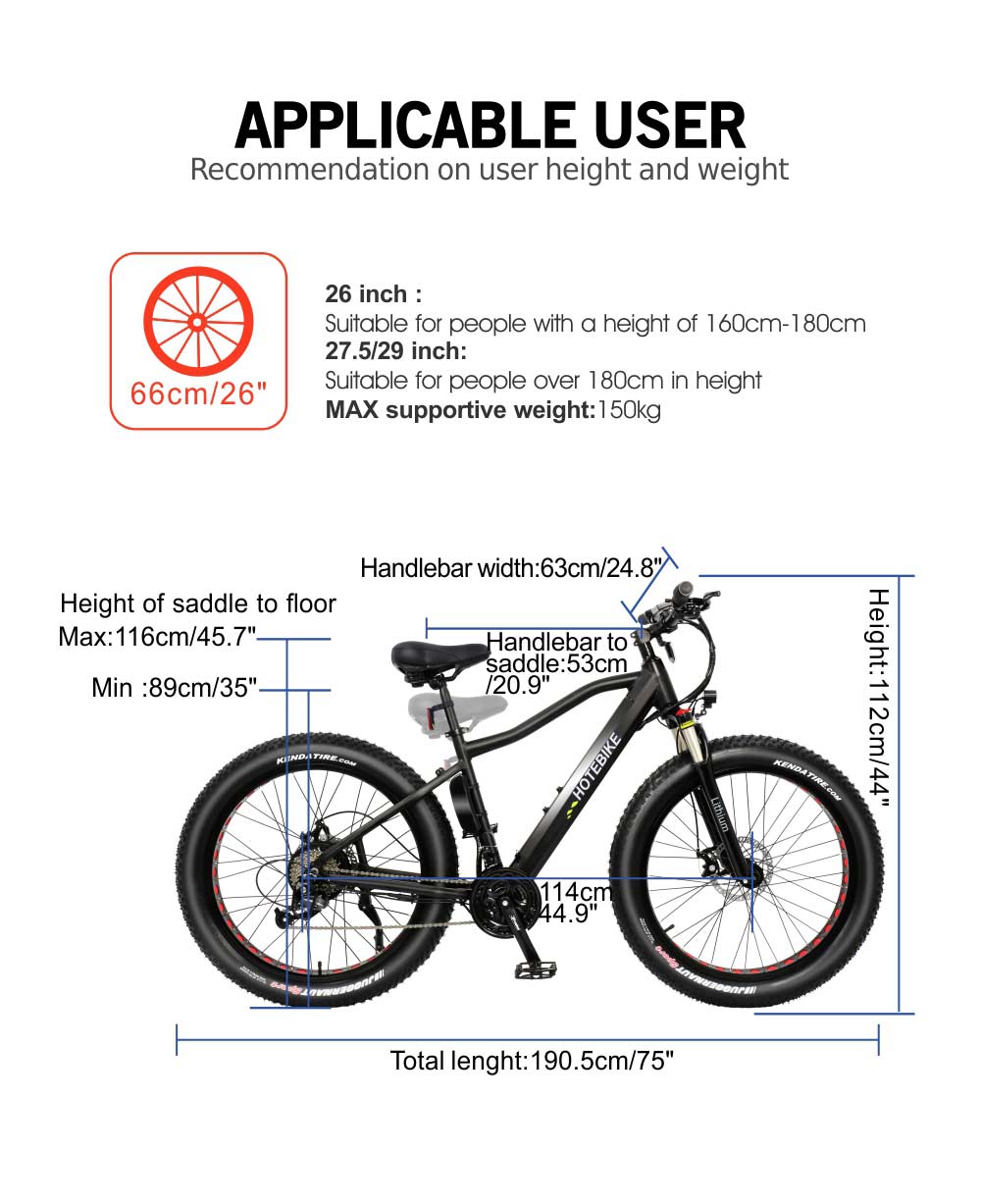

Recommendation on user height and weight：
ⓐ 26 inch : Suitable for people with a height of 155cm-180cm
ⓑ27.5/29 inch: Suitable for people over 180cm in height
MAX supportive weight:150kg
Independently Designed 6061 Aluminum Alloy Frame.
Self-developed and designed frame, under the same size frame, different capacity batteries can be installed
Ⓐ 36V 48V 13ah 16ah battery.
The battery is slightly higher than the frame, protruding a little bit
Ⓑ 36V/48V 10ah 13ah battery
The battery is at the same height as the frame, hidden in the frame, making HOTEBIKE electric bicycle look like an ordinary bicycle
Ⓒ 48V 60V 20ah battery
The motor power can reach up to 2000W, and the max speed is 55km/h.
Details Images
This electric bike comes with a 250w/350w motor that enhances propulsion, it is easy to reach a max speed 25-30km/h. Even if on mountain hilly road, rugged trails or flat street, this electric motor always provide enough power for riders to meet their cycling needs.
Simple handlebar design
An aluminum alloy durable suspension front fork and 100mm change travel bring each rider a shock absorption riding effect on rugged road. There is a turn on/off switch on the left of fork, it can turn on/off the suspension function depen on their riding needs.
160/180 Disc Brake
The brake is sensitive and smooth during emergency braking
The brake is sensitive and smooth during emergency braking
Headlight
Comes with a 5V 1A USB mobile phone charging port on the LED headlight for a convenient phone charging on the ride.
Waterproof lithium battery Removable, lockable Easy to charge it separately Long distance Long life
Specification
|
Specification
|
Standard
|
Optional（MOQ≥100）
|
|
Colour
|
White/Black
|
OEM
|
|
Motor
|
36V 250W/350W gearless brushless hub-motor 48V 250W/350W/500W gearless brushless hub-motor
|
●48V/60V 750W/1000W gearless brushless hub-motor
●bafang motor ●dual motor
●front motor
|
|
Max speed
|
25-30 km/h 30-35 km/h
|
35-45 km/h
|
|
Battery
|
36V 10AH lithium battery with key 48V 10AH lithium battery with key(350mm & 490mm)
|
350mm:
●48V 13AH/14AH490mm: ●48V 15AH,60V 10AH ●48V 13AH/19.2AH,60V 13AH(LG cells) ●48V 20AH,60V 13.6AH(Samsung cells) |
|
Range
|
1:1 PAS mode, 40-80KM
|
|
|
Warranty
|
12 months(Motor & Battery)
|
|
|
Initiating mode
|
PAS and throttle
|
|
|
Charger
|
54.6V 2A 100-240V input CE/UL Certification
|
71.4V 3A 100-240V
|
|
Charging time
|
5-7 hours
|
|
|
Controller
|
48V Intelligent brushless
|
60V Intelligent brushless
|
|
Loading
|
150-200kg
|
|
|
Frame
|
6061 Aluminum alloy
|
|
|
Wheel rim
|
Aluminum alloy double wall
|
|
|
Front fork
|
Suspension aluminum alloy
|
zoom
|
|
Front brake
|
Tektro 160 disc brake
|
Shimano hydraulic disc brake
|
|
Rear brake
|
Tektro 160 disc brake
|
Shimano hydraulic disc brake
|
|
Tyre
|
Kenda 26″*4.0 fat tire
|
|
|
Gear
|
SHIMANO 21 Speed with
derailleur |
SHIMANO 7/9/27 Speed with
derailleur |
|
PAS
|
Five adjustable speed, 1:1 pedal assistant
|
|
|
Brake lever
|
Conjointed shifter with power cut -off brake, shimano series
|
|
|
Display
|
Shuangye LCD3 with electric brake,USB LED light
|
|
|
Saddle
|
Soft bike saddle
|
Other saddle
|
|
Seat tube
|
Aluminum alloy
|
Suspension aluminum alloy
|
|
Front light
|
3W LED headlight with USB charging port
|
|
|
Rear light
|
Riding light, flashing brakes
|
|
|
Sticker &color
|
HOTEBIKE
|
OEM
|
|
Certification
|
CE/UL
|
|
|
Weight
|
N.W:28 G.W:35
|
|
|
Carton size
|
149*37*79
|
Packing & Delivery
FAQ
1. Can I get some samples for test? A: Yes, we can supply samples for quality check and market test. It usually takes about 7-10 days to finish the samples depending on the model and stock 2. What`s your MOQ? A: MOQ is 10pcs . 3. What`s the lead time? A: Sample It usually takes about 7-10days, Container about 35-50days 4. Can you do our logo or brand on the bikes? A: Yes, MOQ: 10pcs for each colour 5.What is your payment terms ? A: T/T, Sample full payment by T/T, Bulk order need 30% as deposit, and 70% before delivery. We’ll show you the photos of the products. 6.Will you deliver the right products as I ordered? How can I trust you? A: Yes, we will. We are Alibaba’s Gold Supplier for 12 years. If you check with Alibaba, you will see that we have never got any complaint from our customers.
